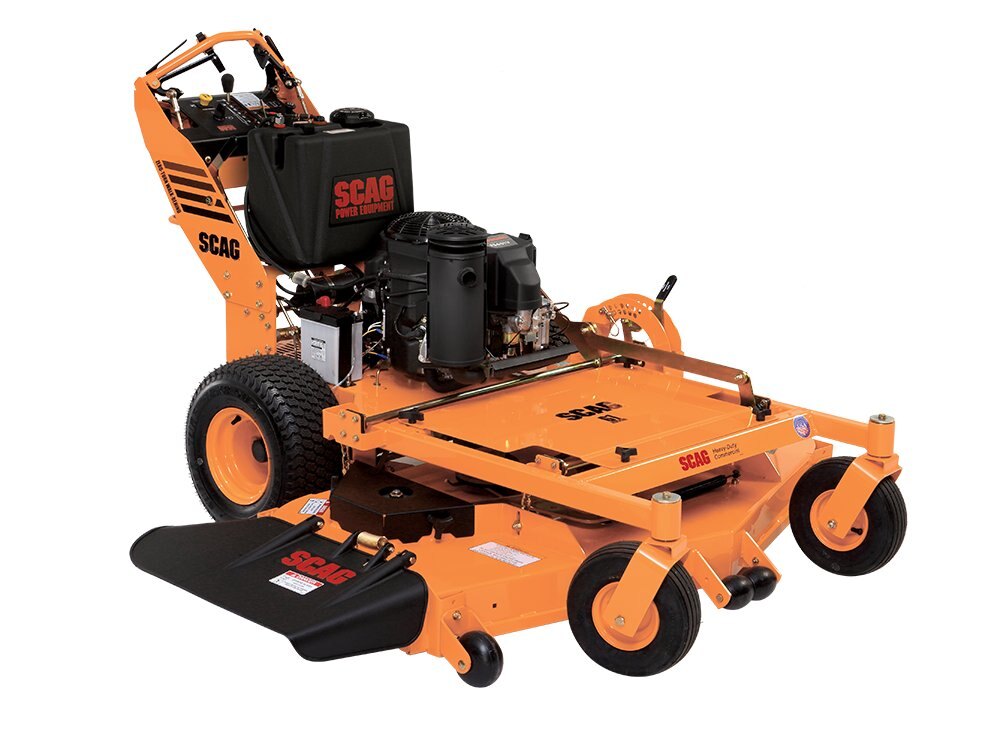

Scag 52" SWZT

  • Scag 52 SWZT
 Value a Trade  Get Financed
Overview
Overview

SWZT Hydro-Drive

HYDRO-DRIVE WALK BEHIND

Get more jobs done from dawn to dusk in more comfort than ever before with the SWZT, featuring ultra-comfortable, ergonomic controls that contour to your hands. Equipped with our legendary toughness and durability, it is packed with features that deliver incredible power, smooth operation, and a long lifespan.
Specifications
Model
52" SWZT
Category Name
Lawn Care
Sale Type
New
Manufacturer
Scag
Quantity
0
Manufacturer Qty
0
Height
44"
Length
76.5″
Weight
605 lb
Tracking Width
41.5″
Width (chute Down)
64.5″
Width (chute In Transport Position)
53″
features

Scag 52 SWZT Ogura PTO Clutch Brake

Strong, Adjustable Clutch for Long Life

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.

Scag 52 SWZT Command perfection

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

Scag 52 SWZT Easy-Adjust Cutter-Deck Height System

No Tools Needed

Innovative, rider-style height-of-cut adjustment is quick and convenient.

Scag 52 SWZT Heavy-Duty Construction

Solid Design for Years of Dependable Service

Full commercial-grade construction ensures years of productive use.

  Scag 52 SWZT Heavy-Duty Drive System

Speeds Up To 7 MPH

Dual ZT-2800 transaxles utilize all-metal internal gears for long life and deliver smooth, infinitely variable speed and bi-directional control. Power comes from a 10 cc variable-displacement, seven-piston pump and a 16 cc fixed-displacement, seven-piston motor in each transaxle. Cooling fans help keep operating temperatures lower.

Scag 52 SWZT Ease of Maintenance

More Uptime

Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZT simple, so you can be in the shop less and on the job more.

Scag 52 SWZT Ergonomic Control System

Easy Operation, Hour After Hour

Ultra-comfortable, ergonomic controls not only contour to the natural angles of your extended arms, but are placed to keep your hands out of harm’s way when mowing next to trees and bushes.

Scag 52 SWZT Powerful and Efficient Engine Options

Reliable Power, Up To 22 HP

Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.
engine and deck combinations
general
Drive_Tires
18″ x 8.5″-8″
Caster_Tires
9" x 6.5"-4"
Total_Fuel_Capacity
5.5 gallons
drive system
Pumps
Internal Pump: 10 cc
Motors
Internal Motor: 16 cc
Parking_Brake
Hand lever
Drive_System_Type
Hydro-Gear ZT2800 Transaxle
Forward_Ground_Speed
Up to 7 mph
Reverse_Ground_Speed
3 mph
deck
Type
Hero Cutter Deck
Spindles
Aluminum housing with sealed ball bearings.
Deck_Lift
Hand lever
Construction
Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Cutting_Height
1.5" to 4.5" in .25" increments
Cutting_Widths
52″
Blade_Engagement
Ogura GT1-BS03 (110 ft lb) Adjustable air-gap for extended life.
