Side delivery rakes for the flexible solution with 7.10m working width
Flexible Raking Solutions:

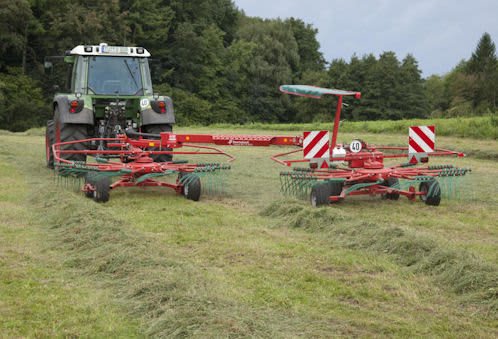

The Kverneland 9471 S Vario and the Kverneland 9471 S Evo are designed for maximum flexibility, for raking in a variety of conditions. The twin rotors work independently, from each other, making it possible to collect either one large swath or two smaller night swaths. These rakes can place two large swaths into one, allowing a total of up to 12.50m crop to be gathered into one swath.
Kverneland SideShift
The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions. A special feature on the Kverneland 9471 S Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
Specifications
Model
9471 S Vario - 9471 S Evo flexible double Rakes
Category Name
Agriculture
Sale Type
New
Manufacturer
Kverneland
Quantity
0
Manufacturer Qty
0
Gallery
technical specifications
Technical_specifications
Working Width
No of Tine Arms
Weight
9471 S Vario
6.60/7.10m
11/12
1400kg
9471 S Evo
6.60/7.10m
11/12
1350kg
features
Features
CompactLine Gearbox
The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimum raking at any working width and on any model.
SideShift
The Vario version also offers the patented SideShift system as an option, which comprises electro-hydraulic control of all functions.
A special feature on the Kverneland 9471 S Vario is the possibility to operate both rotors – front and rear – in an offset position from the tractor cab.
With this patented system, raking along field boundaries or around trees is no problem – as the tractor can run at a safe distance from the obstacles.
It is also possible to run on raked fields while having the rake offset to the left side.
2 Swath Options
It is possble to collect either one large swath or two smaller swaths.
Both 9471 S models can place two large swaths into one, allowing a total of up to 12.50m crop to be gathered into one swath.
9670S Vario can also place two large swaths into one, allowing a total of up to 13.0 m crop to be gathered into one swath.
It is also possible to place two small night swaths for hay crops.
TerraLink
Completely maintenance- and wear-free.
Quiet machine running due to automatic dampening

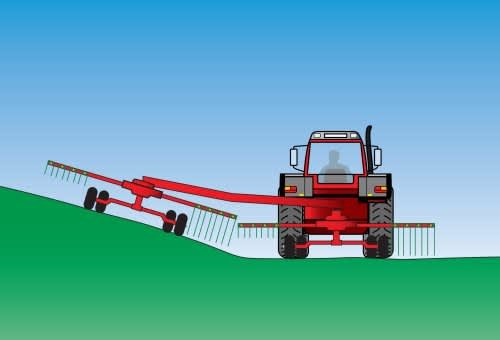

Wide track boogies with large wheels provide perfect ground contour following
Trailed axle configuration enhances quiet running and reduces tractor input power
Superb tracking in road transport
QuickLift
Kverneland 9471 S is equipped with the QuickLift system as standard.
This ensures a lifting height of 50cm to easily over cross existing swathes. Furthermore the axles are pulled
Rotors are lifted using only a single acting valve.
During transport the swath board automatically fold clear. Transport width is below 3m (2.45m with tine arms removed).
